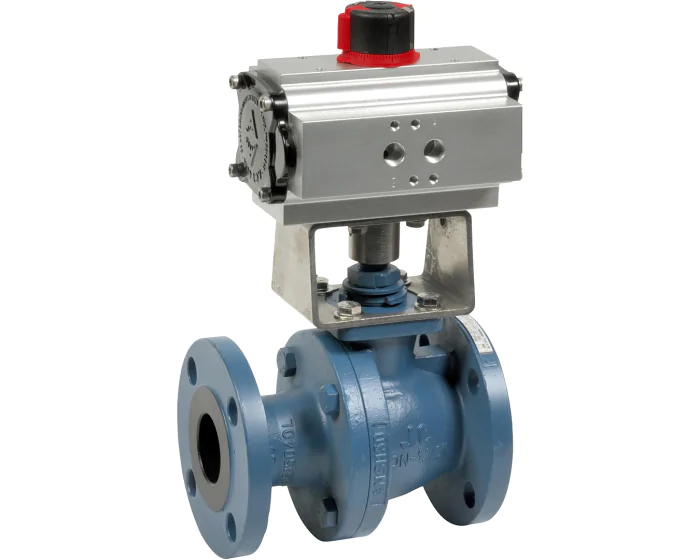

The 515AIT series JC VALVES carbon steel ball valve has an A216WCB body, CF8M ball and PTFE seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN200.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN200 - 8'' |
| Face to Face (mm) | 457.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Position | Normally closed |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Pneumatic actuator type | Spring return |
| Ball valve design | 2-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting Carbon steel A216 WCB (1.0619) | 515AIT015015100 | S1001941 |
€317.11
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return Carbon steel A216 WCB (1.0619) | 515AIT015016101 | S1001942 |
€352.69
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting Carbon steel A216 WCB (1.0619) | 515AIT020015100 | S1001943 |
€342.59
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return Carbon steel A216 WCB (1.0619) | 515AIT020016101 | S1001944 |
€378.14
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting Carbon steel A216 WCB (1.0619) | 515AIT025015101 | S1001945 |
€378.80
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return Carbon steel A216 WCB (1.0619) | 515AIT025016102 | S1001946 |
€434.69
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting Carbon steel A216 WCB (1.0619) | 515AIT050015102 | S1001948 |
€528.23
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Spring return Carbon steel A216 WCB (1.0619) | 515AIT050016104 | S1001949 |
€635.00
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Double acting Carbon steel A216 WCB (1.0619) | 515AIT065015103 | S1001950 |
€813.06
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Spring return Carbon steel A216 WCB (1.0619) | 515AIT065016105 | S1001951 |
€981.94
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Double acting Carbon steel A216 WCB (1.0619) | 515AIT100015105 | S1001953 |
€1,305.53
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Spring return Carbon steel A216 WCB (1.0619) | 515AIT100016106 | S1001954 |
€1,479.86
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Double acting Carbon steel A216 WCB (1.0619) | 515AIT150015106 | S1001955 |
€2,564.29
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN200 - 8'' Double acting Carbon steel A216 WCB (1.0619) | 515AIT200015111 | S1001957 |
€6,695.40
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Carbon steel A216 WCB (1.0619) Full 2-piece body DN200 - 8'' Spring return Carbon steel A216 WCB (1.0619) | 515AIT200016111 | S1001958 |
€7,270.03
(excl. btw)
|
add to cart |
